Variable Valve Timing, commonly abbreviated as VVT, allows an engine to adjust camshaft timing under different operating conditions. The system brings together electronic control, engine oil pressure and mechanical timing components rather than relying on one independent part.
For aftermarket distributors, importers, wholesalers and engine parts procurement teams, understanding these relationships is important when identifying replacement parts and preparing quotation requirements. A VVT solenoid, camshaft phaser or related component may look similar across several applications while differing in OE reference, engine code, installation position, connector or mounting design.
This guide explains the principal VVT system components, how they work together and what information buyers should confirm before sourcing replacement parts.
What Is a Variable Valve Timing System?
A conventional engine uses camshafts to control when the intake and exhaust valves open and close. In a Variable Valve Timing system, the engine can adjust camshaft position instead of maintaining one fixed timing setting under all operating conditions.
The adjustment process generally involves:
- The engine control system calculating the required timing change.
- A VVT solenoid regulating oil flow.
- Engine oil pressure acting on a camshaft phaser.
- The phaser changing the camshaft position.
- Valve timing being advanced or retarded for the required operating condition.
For parts buyers, the important point is that VVT is a connected system. A fault or replacement requirement may involve the solenoid, phaser, oil supply, control circuit or another timing-related component. The required part should therefore be identified by application data rather than by the phrase “VVT part” alone.
VVT System Overview
| Component | Principal role | Information commonly required for sourcing |
|---|---|---|
| VVT solenoid or oil control valve | Regulates oil flow according to an electronic control signal | OE reference, engine code, connector, installation position |
| Camshaft phaser or camshaft adjuster | Uses controlled oil pressure to change camshaft position | OE reference, intake or exhaust position, engine application |
| Camshaft | Controls valve operation and receives the timing adjustment | Engine code, camshaft position, application |
| Engine control system | Determines when timing adjustment is required | Diagnostic and application information |
| Engine oil supply | Provides the hydraulic pressure used by the system | Oil circuit and engine condition information |
Main Components of a VVT System
VVT Solenoid or Oil Control Valve
The VVT solenoid is an electrically controlled valve that regulates oil flow within the variable valve timing system. Depending on the engine and parts catalogue, it may also be described as an oil control valve, camshaft timing solenoid or camshaft control valve.
The solenoid receives a command from the engine control system and changes the oil flow supplied to the camshaft phaser. It does not directly rotate or reposition the camshaft. Its function is to manage the hydraulic control needed by the phaser.
When sourcing a VVT solenoid, buyers should confirm:
- OE reference number;
- engine code;
- vehicle or equipment application;
- intake or exhaust position;
- cylinder bank, where relevant;
- connector shape and terminal arrangement;
- mounting points;
- overall component dimensions;
- product photographs or sample details.
Parts should not be matched only by appearance. Similar housings can be used for components with different electrical, hydraulic or installation requirements.
For a direct comparison of the two principal VVT components, read the difference between a VVT solenoid and a camshaft phaser.

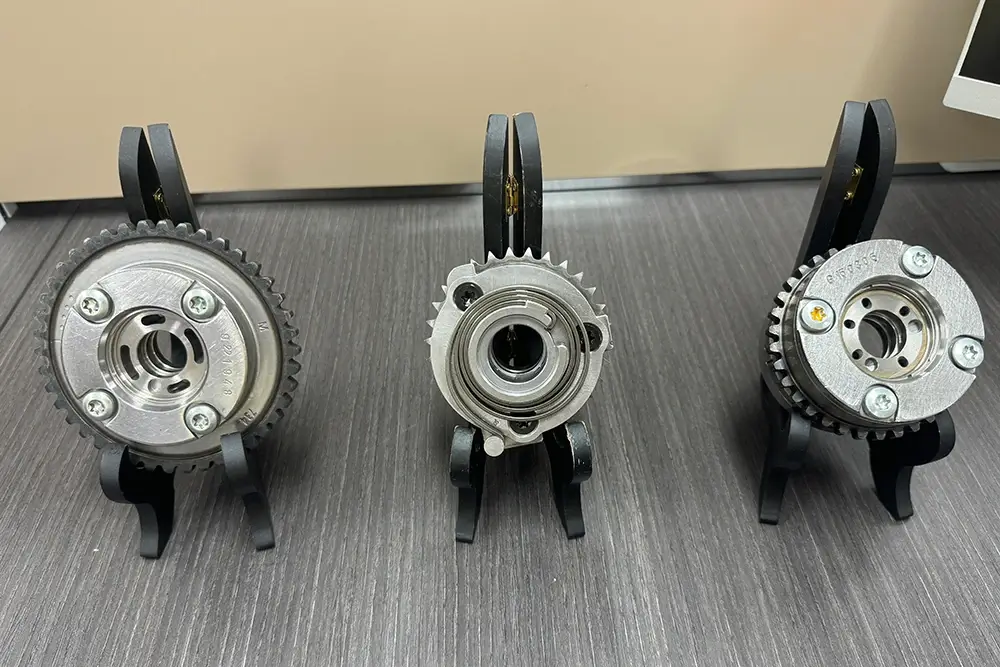

Camshaft Phaser or Camshaft Adjuster
The camshaft phaser is the mechanical and hydraulic component that changes the angular position of the camshaft in relation to the engine timing drive.
Depending on the application and regional terminology, it may also be called a camshaft adjuster, timing adjuster, VVT gear or camshaft actuator. These terms should be checked against the relevant catalogue and OE reference because terminology is not always used consistently.
Controlled oil pressure moves the internal phaser mechanism. This allows the camshaft timing position to be advanced or retarded according to the engine control strategy.
Important sourcing checks include:
- OE reference;
- engine code;
- intake or exhaust camshaft position;
- left or right cylinder bank, where applicable;
- timing drive design;
- bolt pattern and mounting structure;
- compatible camshaft and engine application;
- confirmed supersession or replacement references.
A camshaft phaser should not be selected solely because it has a similar tooth pattern, diameter or external design.
Buyers can review Wellgine’s camshaft phaser product range when evaluating available replacement components.
Camshaft
The camshaft controls valve movement through its lobes and related valve-train components. In a VVT-equipped engine, the phaser changes the camshaft’s timing position while the camshaft continues to perform its mechanical valve-control function.
A VVT system may control:
- the intake camshaft;
- the exhaust camshaft;
- both intake and exhaust camshafts;
- one or both cylinder banks, depending on engine design.
This is why descriptions such as “camshaft VVT part” are usually insufficient for accurate sourcing.

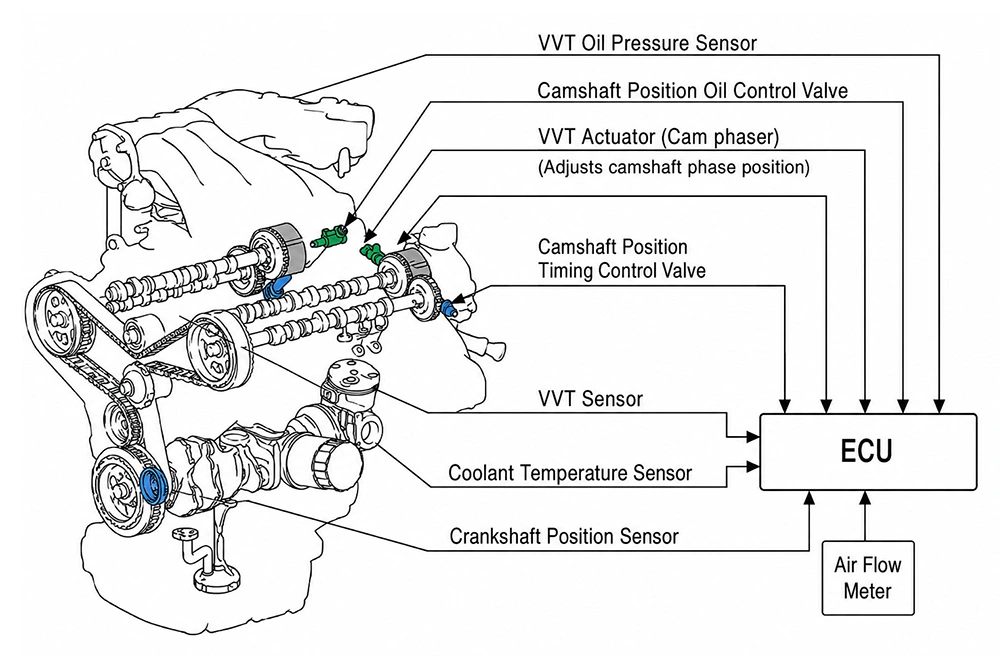

Engine Control and Oil Supply
VVT operation depends on both electronic and hydraulic conditions. The engine control system sends the command, but the adjustment relies on the correct oil flow and pressure reaching the phaser.
From a parts sourcing perspective, this distinction matters because replacing one component may not resolve a wider system issue. Buyers should avoid presenting a single part as a guaranteed solution without confirming the application and diagnostic context.

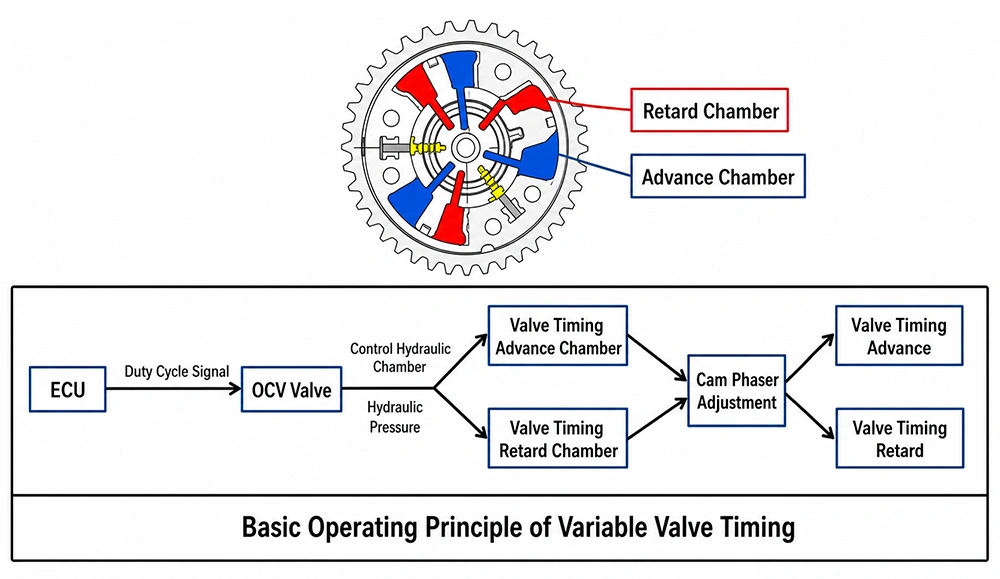

How VVT Components Work Together
The relationship between the principal components can be described in four stages.
1. Control Decision
The engine control system uses operating data to determine whether camshaft timing should be adjusted.
2. Oil Flow Regulation
The control system sends an electrical command to the VVT solenoid. The solenoid changes the flow of engine oil through the relevant control passages.
3. Phaser Movement
The controlled oil pressure acts on the camshaft phaser mechanism, changing its angular position.
4. Camshaft Timing Adjustment
The phaser changes the camshaft position in relation to the engine timing drive. This changes when the relevant valves open and close.
VVT Operating Sequence
| Stage | Input | Component action | Result |
|---|---|---|---|
| 1 | Engine operating data | Control system calculates required timing | Adjustment command generated |
| 2 | Electrical command | VVT solenoid regulates oil flow | Hydraulic circuit changes |
| 3 | Controlled oil pressure | Camshaft phaser changes position | Camshaft angle is adjusted |
| 4 | New camshaft position | Valve timing changes | Engine operates with the commanded timing |
Why VVT Parts Require Careful Identification
VVT components are application-specific. A part may have a similar shape or connector while being intended for a different engine, camshaft position or control specification.
Common causes of incorrect matching include:
- relying only on vehicle make and model;
- overlooking engine-code differences;
- confusing intake and exhaust components;
- ignoring left-bank and right-bank positions;
- using an incomplete or superseded OE reference;
- matching by appearance without confirming dimensions;
- treating a VVT solenoid and a camshaft phaser as interchangeable;
- assuming all solenoid valves in an engine are VVT components.
The final point is particularly important. Engine solenoid categories can also include piston cooling solenoids, oil-pump control solenoids and other oil-control components. These parts may use similar naming conventions but do not necessarily belong to the camshaft timing system.
VVT Parts Identification Checklist for Buyers
Accurate quotation preparation begins with a structured set of application and product information.
OE Reference Number
The OE reference is one of the strongest starting points for product identification. Buyers should provide the complete number, including prefixes, suffixes and any alternative references shown on the original part or catalogue.
An OE reference should still be checked against:
- engine code;
- vehicle application;
- component position;
- regional application;
- supersession information.
Engine Code
The same vehicle model may use different engines across production years or markets. The engine code helps narrow the application and reduces the risk of selecting a component for the wrong engine variant.
Vehicle and Application Information
Useful details include:
- manufacturer;
- model;
- model year;
- engine displacement;
- fuel type;
- market or region;
- relevant chassis or application information.
This information supports identification but should not automatically replace OE-reference or engine-code confirmation.
Component Position
Buyers should specify whether the part is used on:
- the intake camshaft;
- the exhaust camshaft;
- the left cylinder bank;
- the right cylinder bank;
- another clearly defined installation position.
“Front”, “rear”, “left” and “right” descriptions can vary according to catalogue conventions. OE data or installation diagrams are preferable where available.
Connector and Mounting Details
For VVT solenoids, confirm:
- number of terminals;
- connector shape;
- connector orientation;
- mounting-hole arrangement;
- body length;
- seal position.
For camshaft phasers, confirm:
- timing-wheel design;
- number and arrangement of mounting points;
- central bolt configuration;
- external dimensions;
- application position.
Product Photographs or Sample
Clear photographs can help verify external design when OE data is incomplete. Recommended images include:
- full product view;
- connector close-up;
- mounting surface;
- part markings;
- packaging or label;
- comparison with the original sample.
Photographs support identification but do not replace confirmed application data.
Quotation Quantity and Supply Requirements
For a complete B2B quotation, buyers should also provide:
- required quantity;
- target market;
- packaging requirements;
- private-label requirements, where applicable;
- delivery expectations;
- inspection or documentation requirements.
Buyer Identification Table
| Required information | Example of acceptable detail | Why it is required |
|---|---|---|
| OE reference | Complete number from the original component or catalogue | Establishes the initial replacement reference |
| Engine code | Exact engine designation | Separates similar vehicle applications |
| Vehicle application | Make, model, year and market | Supports application verification |
| Component position | Intake, exhaust, bank 1 or bank 2 | Prevents position-related mismatch |
| Connector details | Terminal number, shape and orientation | Confirms electrical interface |
| Product photograph | Clear images of the original part | Supports physical comparison |
| Quantity | Trial order or forecast volume | Supports quotation and supply planning |
| Packaging requirement | Neutral or private-label packaging | Defines commercial requirements |
Key Considerations When Sourcing VVT Replacement Parts
Confirm the Application Before Quotation
A quotation based on incomplete application data may refer to the wrong component even when the product description appears correct.
Before confirming a part, the supplier and buyer should establish:
- which engine uses the component;
- whether it is an intake or exhaust part;
- whether bank position is relevant;
- whether the OE reference is current;
- whether regional application differences exist;
- whether the requested component is a solenoid, phaser or another control part.
When information conflicts, the part should remain unconfirmed until additional evidence is available.
Distinguish Reference OE Numbers from Confirmed Applications
An OE number may be used as a replacement reference, but it should not automatically be treated as proof of every listed vehicle application.
Reliable sourcing documentation should distinguish between:
- a reference number supplied by the buyer;
- an alternative or superseded reference;
- a confirmed engine application;
- an application that still requires verification.
This distinction reduces the risk of unsupported compatibility claims.
Review Product Specifications
Depending on the component, buyers may need to compare:
- connector configuration;
- electrical specification;
- valve-body dimensions;
- mounting structure;
- sealing surfaces;
- timing-wheel design;
- material and manufacturing requirements;
- packaging and marking requirements.
Only specifications supported by product data or inspection records should be presented as confirmed facts.
Define Commercial Requirements
Technical matching is only one part of B2B sourcing. Buyers should also clarify:
- forecast quantity;
- minimum order expectations;
- packaging format;
- branding requirements;
- sample requirements;
- production or delivery schedule;
- destination market;
- required documentation.
These details help the supplier determine whether the product and supply arrangement are suitable for the enquiry.
Request Confirmation Where Data Is Incomplete
If the buyer cannot provide a complete OE number or engine code, the quotation request should clearly state which details are missing.
Useful supporting materials may include:
- product photographs;
- part dimensions;
- engine identification information;
- existing catalogue records;
- sample components.
A responsible supplier should identify the information that still requires confirmation rather than treating an approximate match as a verified application.
Common VVT Sourcing Risks
Matching by Appearance Alone
Two components can share a similar body or housing while differing in connector, internal specification or application.
Confusing the Solenoid with the Phaser
The solenoid regulates oil flow. The phaser mechanically changes the camshaft position. They perform different functions and are not interchangeable.
Ignoring Intake and Exhaust Positions
Some engines use different components for the intake and exhaust camshafts. Others may use similar parts with different calibration, connector orientation or installation details.
Overlooking Engine-Code Variations
Vehicle model names can cover several engines. The engine code is often necessary for accurate confirmation.
Treating Every Engine Solenoid as a VVT Solenoid
Oil-pump solenoids, piston cooling solenoids and other engine oil-control valves may be listed under broader engine-solenoid categories. Their functions and applications should not be merged with camshaft timing components.
Using Unsupported Compatibility Claims
Application information should be based on verified catalogue, OE, technical or buyer-supplied evidence. Similarity between parts is not sufficient proof of interchangeability.
VVT Solenoid and Camshaft Phaser Comparison
| Comparison point | VVT solenoid | Camshaft phaser |
|---|---|---|
| Principal function | Regulates oil flow | Changes camshaft position |
| Control type | Electrical and hydraulic | Mechanical and hydraulic |
| Typical input | Command from engine control system | Controlled engine oil pressure |
| Typical output | Changes oil flow to the phaser | Advances or retards camshaft timing |
| Common identification points | OE reference, connector, mounting, position | OE reference, engine code, timing design, position |
| Interchangeable with the other component | No | No |
For a more detailed explanation, visit VVT Solenoid Valve vs Camshaft Phaser.
Information to Include in a VVT Parts Enquiry
A well-prepared enquiry should include the following information.
Technical Information
- OE reference number;
- engine code;
- vehicle make and model;
- model year;
- intake or exhaust position;
- cylinder bank, where applicable;
- connector and mounting details;
- product photographs;
- sample availability.
Commercial Information
- required quantity;
- trial or regular order requirement;
- target market;
- packaging preference;
- private-label requirement, where applicable;
- requested delivery schedule;
- additional documentation requirements.
Recommended Enquiry Format
| Field | Buyer information |
|---|---|
| Part type | VVT solenoid, camshaft phaser or related component |
| OE reference | |
| Engine code | |
| Vehicle application | |
| Installation position | |
| Quantity | |
| Packaging requirement | |
| Product photographs | Attached / not available |
| Additional specification |
Frequently Asked Questions
Are VVT solenoids and camshaft phasers the same component?
No. The VVT solenoid regulates oil flow in response to an electrical command. The camshaft phaser uses controlled oil pressure to change the camshaft position. They are separate components with different functions.
Is a VVT solenoid the same as an oil control valve?
In many catalogues and applications, a VVT solenoid may be described as an oil control valve. However, “oil control valve” can also be used for other engine oil-control components. The OE reference, engine application and system function should always be confirmed.
Can VVT parts be identified by vehicle model alone?
Vehicle model information is useful, but it may not be sufficient. The same model can use different engines, component positions or parts across production years and markets. OE reference and engine-code information should be supplied where available.
Are intake and exhaust VVT solenoids interchangeable?
Not necessarily. Some applications use the same part in both positions, while others use different components. The OE reference, engine application and installation position must be checked.
For a more detailed identification process, read How to Identify the Correct VVT Solenoid Valve.
What information should a buyer provide for a VVT parts quotation?
The enquiry should include the OE reference, engine code, vehicle application, component position, product photographs, quantity and packaging requirements.
Can a camshaft phaser be identified by its appearance?
Appearance can support comparison, but it is not enough to confirm an application. Buyers should also verify the OE reference, engine code, intake or exhaust position, mounting structure and timing-drive design.
Does replacing a VVT solenoid always solve a VVT system problem?
No. A VVT system includes electronic, hydraulic and mechanical components. A problem may involve the solenoid, phaser, oil supply, control circuit or another timing-related part. Parts should not be presented as a guaranteed repair without an appropriate diagnosis.
Related VVT Products and Technical Resources
Review Wellgine’s VVT solenoid product category for available engine oil-control and timing-control components. Confirm the individual product function because the broader category may include solenoids used outside the camshaft timing system.
Explore the camshaft phaser product category for replacement camshaft adjusters and related timing components.
Read VVT Solenoid Valve vs Camshaft Phaser for a direct comparison of their functions.
Read How to Identify the Correct VVT Solenoid Valve for a more detailed component-identification process.
Source VVT Components with Clear Application Information
Wellgine supports international aftermarket buyers seeking VVT solenoids, camshaft phasers and related engine components.
To request product confirmation or a quotation, provide:
- the complete OE reference;
- engine code;
- vehicle or equipment application;
- intake, exhaust or cylinder-bank position;
- clear product photographs;
- required quantity;
- packaging or private-label requirements, where applicable.
Application and replacement information remains subject to confirmation against the available technical and product data.
Contact Wellgine with your VVT component requirements.
