An intake camshaft operates the intake valves, while an exhaust camshaft operates the exhaust valves. Although this distinction is straightforward, identifying the correct replacement camshaft can be difficult when components have similar lengths, profiles or end structures.
For importers, distributors and procurement teams, a complete camshaft enquiry should state the OE reference, engine code, intake or exhaust position, left or right bank where relevant, vehicle application and product structure. The correct camshaft should not be selected from the vehicle model or a general photograph alone.

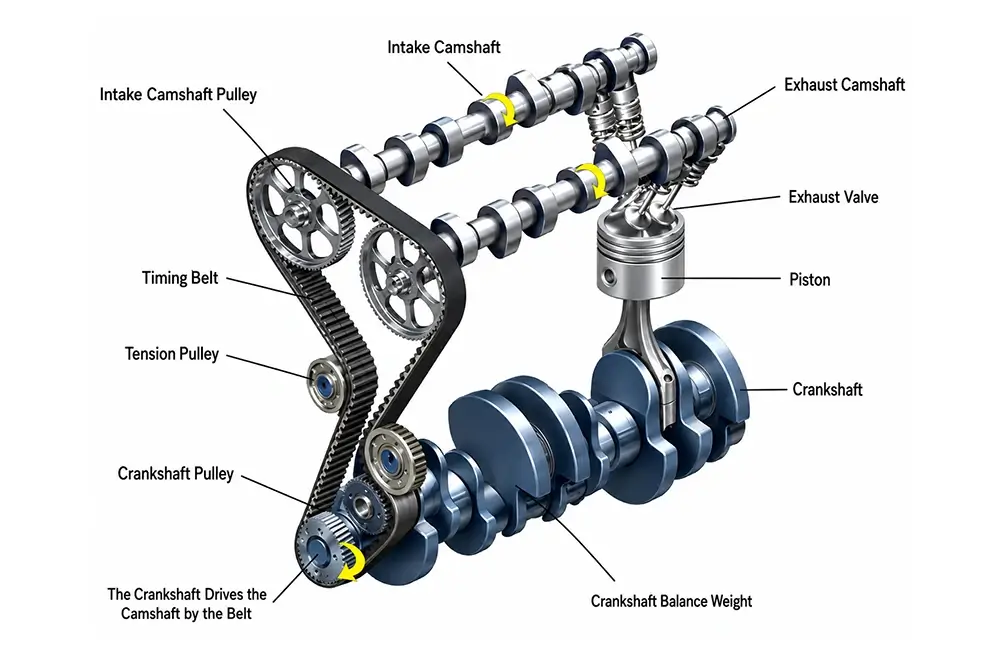

What Is an Intake Camshaft?
The intake camshaft controls the opening and closing of the intake valves. These valves allow fresh air or the air-fuel charge to enter the cylinders, depending on the engine type.
The camshaft lobes act through the valve-train components to open the valves according to the designed timing and lift profile. In a variable valve timing engine, the intake camshaft may connect to a camshaft phaser that adjusts its phase relative to the crankshaft.
What Is an Exhaust Camshaft?
The exhaust camshaft controls the opening and closing of the exhaust valves, allowing combustion gases to leave the cylinders.
Depending on the engine design, an exhaust camshaft may differ from the intake camshaft in cam-lobe profile, timing relationship, end machining, oil-feed arrangement, sensor-trigger feature, phaser connection, gear or sprocket interface, overall dimensions and OE reference.
Some engines use variable timing on the exhaust side, while others use it only on the intake side or not at all. The exact application must therefore be checked.
Intake and Exhaust Camshaft Comparison
| Check point | Intake camshaft | Exhaust camshaft |
|---|---|---|
| Main function | Operates intake valves | Operates exhaust valves |
| Cylinder-head position | Intake side | Exhaust side |
| OE reference | Often position-specific | Often position-specific |
| Cam profile | Designed for intake-valve events | Designed for exhaust-valve events |
| VVT connection | May connect to an intake phaser | May connect to an exhaust phaser |
| Sensor feature | Application-dependent | Application-dependent |
| Bank position | May differ by left or right bank | May differ by left or right bank |
| Interchangeability | Must be verified | Must be verified |
These are general distinctions. The actual design depends on the engine.
Why Intake and Exhaust Camshafts May Look Similar
Camshafts from the same engine may share a similar overall length, journal arrangement, surface finish, lobe count and basic shaft construction. However, relatively small differences can determine whether a camshaft is suitable for the intake or exhaust position.
Important differences may include lobe angle and profile, spacing between lobes, oil-feed drilling, sensor-reluctor pattern, thread and flange design, keyway or locating feature, phaser attachment, vacuum-pump drive, high-pressure fuel-pump drive lobe and identification markings.
A photograph taken from one side is rarely sufficient for complete confirmation.
How B2B Buyers Confirm Camshaft Position
Confirm the OE Reference
The OE reference should be checked first. Buyers should determine whether the number is for intake or exhaust, whether it applies to Bank 1 or Bank 2, whether it has been superseded and whether it refers to a bare camshaft or a larger assembly.
Confirm the Engine Code
Vehicle model and displacement are not always enough. An engine family may have several technical revisions. The enquiry should include the full engine code, fuel type, displacement, vehicle model, production year and target market.
Confirm Intake or Exhaust
The enquiry and purchase order should explicitly state intake camshaft or exhaust camshaft. Avoid informal descriptions such as “front camshaft” unless the terminology is supported by reliable application data.

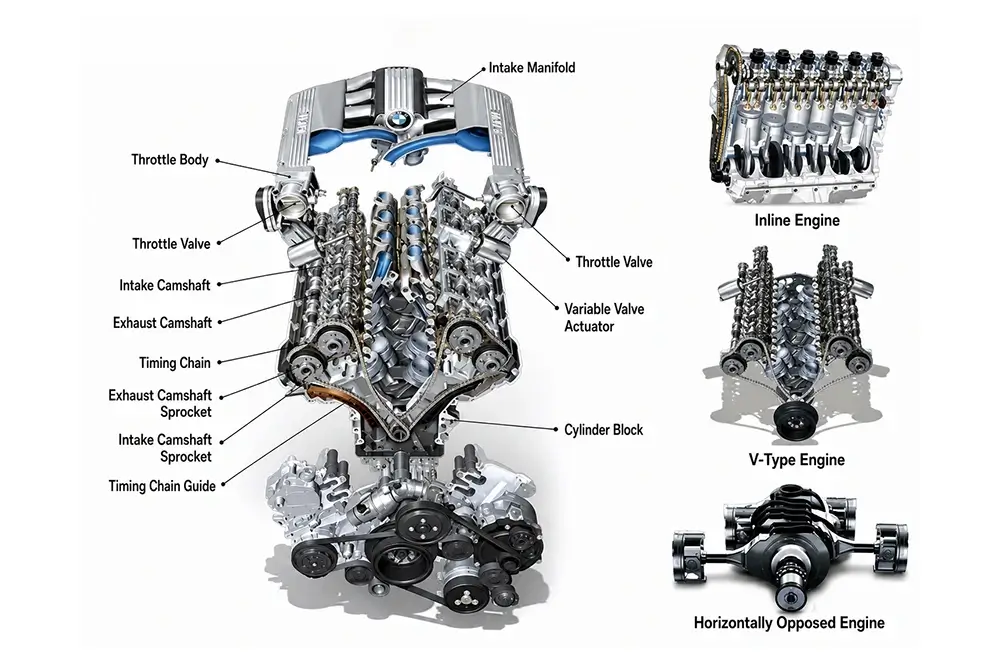

Confirm Left or Right Bank
A V-type engine may use different camshafts for the left bank, right bank, Bank 1 or Bank 2. The bank description should follow reliable engine data because left and right can be interpreted differently when the viewing direction is not defined.

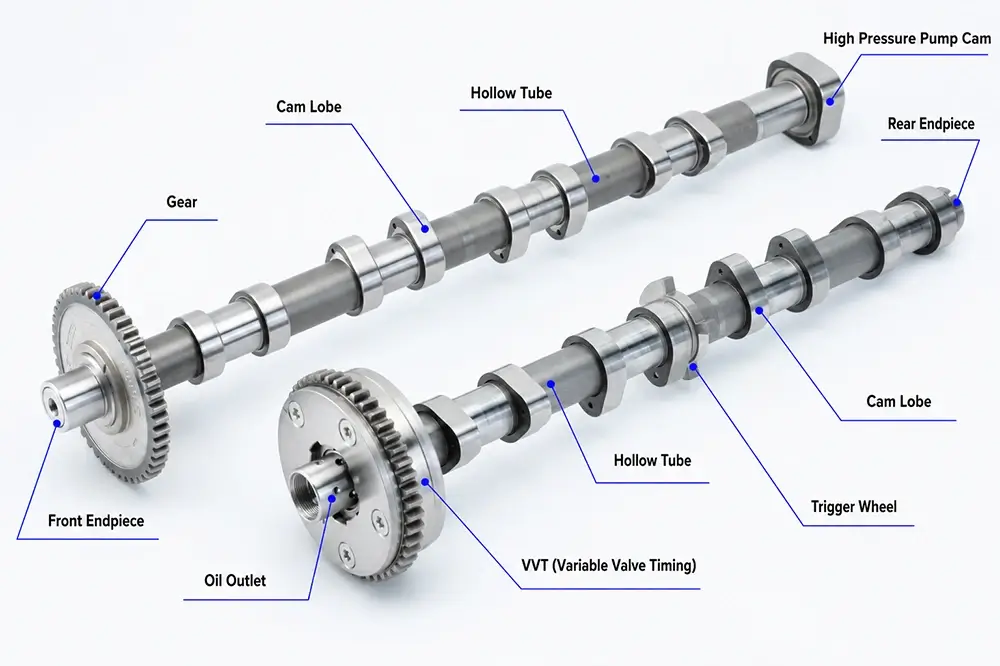

Compare Both Ends of the Camshaft
Compare the phaser or sprocket mounting, bolt thread, flange, keyway, locating pin, sensor trigger, vacuum-pump drive, fuel-pump drive feature, oil hole and end dimensions. Photographs should show both ends clearly.
Compare the Lobe and Journal Arrangement
Useful checks include the number and position of lobes, journal number and spacing, overall length, bearing-journal diameter, additional drive lobes, thrust surface position and identification marks.
Dimensions should be compared with approved technical data or a confirmed sample rather than used independently of application information.
Camshaft, Camshaft Phaser and VVT Solenoid: Different Components
These components may work together, but they perform different functions.
- Camshaft: operates the engine valves through its lobes and the associated valve train.
- Camshaft phaser: changes the angular position of the camshaft relative to its drive within the designed range.
- VVT solenoid valve: controls oil flow used to actuate the phaser in many hydraulic VVT systems.
A buyer should not use “camshaft”, “camshaft adjuster” and “camshaft solenoid” as interchangeable product names. See the difference between a VVT solenoid valve and a camshaft phaser.
Why a Camshaft Position Sensor Does Not Identify the Camshaft by Itself
A camshaft position sensor provides the control unit with information about camshaft position or angle. However, the sensor reference alone does not necessarily identify the correct replacement camshaft. Several camshafts or engine variants may use related sensing arrangements.
The camshaft should still be confirmed by OE reference, engine code, intake or exhaust position, bank, end structure, application catalogue and sample where necessary.
Common Camshaft Ordering Errors
- Ordering by vehicle model only
- Confusing intake and exhaust positions
- Omitting the engine code
- Ignoring the bank position
- Confusing the camshaft with the phaser
- Failing to state whether a bare shaft or assembly is required
- Relying on a worn sample without application data
- Ignoring OE-number revisions or supersessions
For a broader procurement process, see the camshaft sourcing guide for importers.
Information to Include in a Camshaft Enquiry
- OE reference
- Engine code
- Vehicle make, model and year
- Petrol or diesel application
- Intake or exhaust position
- Bank 1 or Bank 2 where applicable
- Left or right bank where reliably defined
- Bare camshaft or assembly requirement
- Photographs of the complete shaft
- Photographs of both ends
- Markings and relevant dimensions
- Sample availability
- Required quantity
- Target market
- Packaging or private-label requirements
Camshaft Inspection Points for Batch Orders
The inspection plan should be based on the approved specification, drawing or reference sample. Depending on the product and agreed quality plan, checks may include product identity, intake or exhaust position, appearance, machined surfaces, end features, journal and lobe arrangement, specified dimensions, cleanliness, rust protection, packaging, labels and batch traceability.
Material, hardness and critical dimensional requirements are controlled according to the confirmed drawing, approved sample or project specification. Specific values should be stated only where they are supported by the relevant product documentation.
How Wellgine Supports Replacement Camshaft Sourcing
Wellgine supports B2B enquiries for selected replacement camshafts, including BMW camshafts, Mercedes-Benz camshafts, VW camshafts and Ford camshafts.
Application review can be based on the OE reference, engine code, intake or exhaust position, bank information, end structure, product photographs, physical sample, required quantity and packaging requirements.
Every finished camshaft is subject to 100% final inspection before shipment. The applicable checks may include product identity, appearance, key dimensions, machined-surface condition, end features and conformity with the approved drawing or sample.
Material verification, hardness checks and other product-specific validation are controlled according to the relevant quality plan and technical requirements. The statement of 100% final inspection does not imply that destructive material or durability tests are performed on every individual camshaft.
Wellgine provides a 12-month product warranty, subject to the agreed sales terms, correct application confirmation, proper installation, normal use and traceable batch information.
Production capacity and lead time vary by camshaft type, tooling, technical requirements and order quantity, and are confirmed during project evaluation.
Frequently Asked Questions
Can intake and exhaust camshafts be interchangeable?
They should not be assumed interchangeable. Their profiles, oil passages, end structures, phaser interfaces or OE references may differ.
How can I tell whether a camshaft is intake or exhaust?
Use the OE number, engine code, application data, markings, end structure, lobe arrangement and a confirmed sample where necessary.
Why is the engine code necessary?
The same vehicle model or displacement may use several engine variants. The engine code provides a more precise application reference.
Is a camshaft the same as a camshaft phaser?
No. The camshaft operates the valves, while the phaser adjusts camshaft phase in a variable timing system.
What does Bank 1 or Bank 2 mean in a camshaft enquiry?
The terms identify the two cylinder banks of certain V-type engines. They may be necessary to distinguish different camshaft positions.
Conclusion
The difference between an intake and exhaust camshaft is functional, but correct product identification requires more than knowing which valves each shaft operates.
B2B buyers should confirm the OE reference, engine code, intake or exhaust position, bank, end features, application details and supplied configuration before placing an order.
Send Wellgine your OE number, engine code, camshaft position, bank information, product photographs and required quantity for application review and quotation support.
