LR098386 Oil Pump for Jaguar Land Rover AJ126 & AJ133
The Wellgine LR098386 oil pump is an aftermarket replacement for selected Jaguar Land Rover applications using AJ126 3.0L V6 and AJ133 5.0L V8 petrol engines. Confirm the original part number, engine specification and vehicle production details before ordering.
Related references listed for this product include AJ813913, C2Z29995 and LR061968. Reference numbers should be checked against the vehicle application and original-pump structure; an engine-family name alone does not confirm interchangeability.
For distributors, engine rebuilders and wholesale buyers, the listed minimum order quantity is 5 pieces. Send the OE number, VIN or engine code, required quantity and destination country for application review and quotation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | LR098386 Engine Oil Pump |
| OE Part Numbers | LR098386, LR061968, C2Z29995, AJ813913 |
| Engine Applications | Selected AJ126 / AJ133 petrol applications |
| Engine Displacement | 3.0L V6 / 5.0L V8 |
| Warranty | 12 months or 12,000 miles from the date of Ex-factory |
| Packing | Neutral Packing or Customer Required |
| MOQ | 5 pcs |
| Place of Origin | Ningbo, China |
| Brand | Wellgine |
LR098386 Fitment and OE Reference Checks
LR098386 is listed for selected Jaguar Land Rover AJ126 and AJ133 petrol-engine applications. A shared engine family or displacement does not establish that every vehicle uses the same oil pump. Confirm the original reference, VIN or production details and pump configuration before approving a replacement.
When checking AJ813913, C2Z29995 or LR061968 against LR098386, confirm whether the reference applies to the same vehicle specification and supplied assembly. A cross-reference listing is not, by itself, a verified supersession history.
| Check | What to confirm |
|---|---|
| Original reference | Complete number from the original pump or an application-specific parts record |
| Vehicle identification | VIN, model and production date |
| Engine specification | AJ126 or AJ133, displacement and relevant engine version |
| Pump structure | Housing, rear mounting face, bolt positions, drive interface and oil ports |
| Assembly scope | Included control components, seals and accessories |
If the reference and physical pump do not agree, resolve the difference before ordering. Our oil pump OE-number matching guide explains how to combine part numbers, engine information and photographs when checking a replacement.
Housing, Drive Interface and Supplied Components

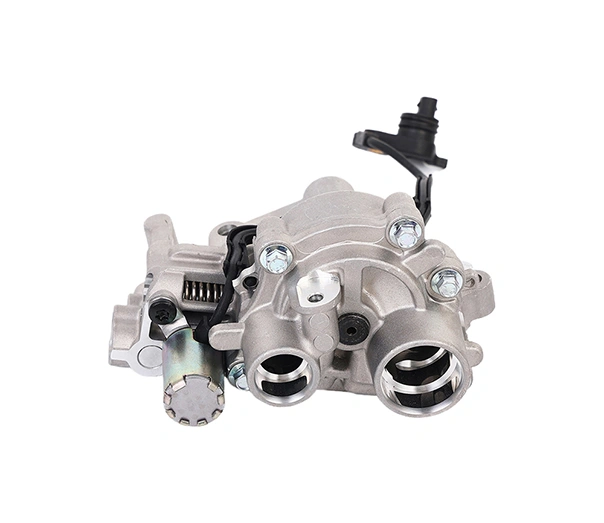

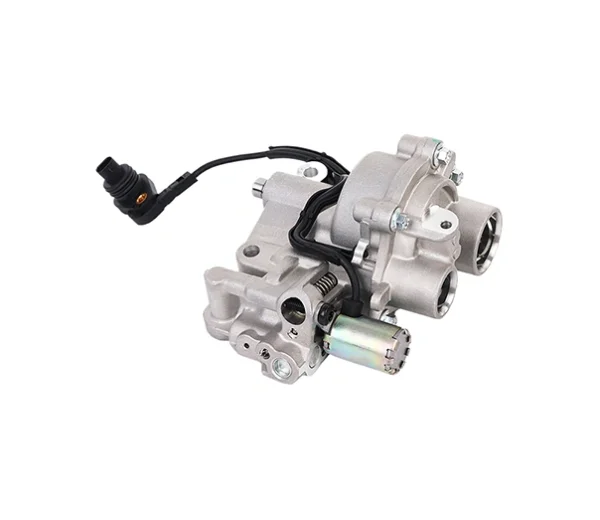

After checking the reference number and application, compare the original pump with the product photographs. The front view helps identify the housing profile, while the rear and angled views help reveal mounting points, drive features, oil passages and sealing surfaces.
The quotation should also state which components are included. Confirm the pump assembly, any control valve or solenoid, seals and accessories rather than assuming that every item shown in a reference photograph is part of the order. For an explanation of these comparison points, see our engine oil pump structure guide.
LR098386 Wholesale Supply and Inspection
Wellgine supports LR098386 enquiries from distributors, wholesalers and engine rebuilders. The listed minimum order quantity is 5 pieces. Packaging, delivery schedule and inspection requirements should be agreed for the specific order.
Before batch approval, confirm the following:
- OE-reference and vehicle-application review;
- housing, mounting-face and drive-interface comparison;
- included components and assembly scope;
- inspection requirements based on the approved sample, drawing or agreed specification;
- quantity, packaging and shipment terms.
Our engine parts quality-control page outlines the broader inspection process. If dimensional records or functional test results are required, specify them during quotation so their availability and scope can be confirmed.
LR098386 Oil Pump FAQs
1. Is LR098386 suitable for every AJ126 or AJ133 engine?
No. The engine family alone is not sufficient to confirm fitment. Check the original OE reference, VIN or production details and pump structure for the specific vehicle before ordering.
2. Can AJ813913, C2Z29995 or LR061968 be matched to LR098386?
These numbers are listed as related references for this product. Confirm the application and supplied assembly against the original part and an appropriate parts record before treating them as interchangeable. A reference list does not establish a universal replacement sequence.
3. Is this a genuine Jaguar Land Rover oil pump?
This is a Wellgine-branded aftermarket replacement. Jaguar Land Rover names and OE references are used for application identification; they do not mean the product is a genuine Jaguar Land Rover-branded part.
4. Does the supplied assembly include the control valve and seals?
The included components must be confirmed in the quotation. Ask for the exact supply scope, including any control valve or solenoid, seals and accessories, and compare it with the product photographs before approving the order.
5. Can low oil pressure confirm that LR098386 needs replacement?
No. Low oil pressure can also involve oil level or viscosity, pickup restrictions, sensor faults, bearing wear or other lubrication-system problems. Diagnosis and application matching are separate checks. Review our oil pump diagnosis guide before selecting a replacement based on symptoms.
6. What should I send for an LR098386 quotation?
Delivery terms: EXW or FOB. Standard payment terms: 30% T/T deposit and 70% balance before delivery, subject to the agreed quotation.
