Audi Glow Plug 068 905 061 / N 102 130 02 – 11V
11V metal glow plug for selected Audi diesel applications, referenced to OE numbers including 068 905 061, N 102 130 01 and N 102 130 02.
Plug voltage (P.V.): 11V
Vehicle system voltage (B.V.): 12V
Mounting thread: M12 × 1.25
Terminal thread: M5
Hex size: 12 mm
Overall length: 65 mm
Wellgine supplies this Audi glow plug for OEM, aftermarket, wholesale and private-label programmes. Please confirm the OE number, engine code, production date and original plug dimensions before ordering.
Audi 11V Diesel Glow Plug for OE 068 905 061
This metal glow plug is designed for selected Audi diesel engine applications using an 11V plug within a 12V vehicle electrical system. It is identified by a group of Audi and VAG OE reference numbers, including 068 905 061, N 102 130 01 and N 102 130 02.
Wellgine is an OEM Audi glow plug supplier serving automotive aftermarket distributors, importers, wholesalers, engine parts specialists and private-label buyers. The product can be evaluated by OE reference, engine code, vehicle production period and physical dimensions before a bulk order is confirmed.
Because the same Audi model or engine family may use different glow plugs according to its production period or installation configuration, the vehicle name alone should not be used as the final application criterion.
Product Specifications
| Specification | Product Data |
|---|---|
| Product type | Metal diesel glow plug |
| Plug voltage, P.V. | 11V |
| Vehicle system voltage, B.V. | 12V |
| Overall length | 65 mm |
| Installation length shown on drawing | 20 mm |
| Mounting thread | M12 × 1.25 |
| Electrical terminal | M5 threaded terminal |
| Hex size | 12 mm |
| Application type | Selected Audi diesel engines |
| Supply type | OEM, aftermarket, wholesale and private-label supply |
Audi and VAG OE Reference Numbers
This glow plug is supplied for identification against the following confirmed OE reference numbers:
| OE Reference | Reference Type |
|---|---|
| 068 905 061 | Primary Audi/VAG reference |
| N 019 081 1 | Audi/VAG reference |
| N 019 081 2 | Audi/VAG reference |
| N 019 081 4 | Audi/VAG reference |
| N 019 097 1 | Audi/VAG reference |
| N 019 100 1 | Audi/VAG reference |
| N 019 100 2 | Audi/VAG reference |
| N 019 100 5 | Audi/VAG reference |
| N 019 100 6 | Audi/VAG reference |
| N 102 130 01 | Audi/VAG reference |
| N 102 130 02 | Audi/VAG reference |
OE numbers are provided for product identification and application matching. Audi and related vehicle names are used only to identify the intended vehicle application. Final suitability must be confirmed for the specific engine and vehicle configuration.
Selected Audi Diesel Applications
Wellgine application records associate this glow plug family with selected diesel versions of the following Audi model ranges:
- Audi 80 diesel models
- Audi 90 diesel models
- Audi 100 diesel models
- Audi A4 B5 diesel models
- Audi Cabriolet diesel models
Listed engine codes include selected applications using 1Y, AAZ, CR, JK, CY, RA, SB, 3D, AAS, CN, DE, NC, AFF, AFN, AHH, AHU, AVG and 1Z engines.
Audi 80
| Engine Code | Application Reference | Production Reference |
|---|---|---|
| 1Y | Audi 80 1.9 D | 08/1989–08/1991 |
| AAZ | Audi 80 B4 1.9 TD | 09/1991–12/1994 |
| CR, JK | Audi 80 B2 1.6 D | 08/1980–08/1986 |
| CY | Audi 80 B2 1.6 TD | 08/1981–05/1986 |
| JK | Audi 80 B3 1.6 D | 02/1987–07/1989 |
| RA, SB | Audi 80 B3 1.6 TD | 09/1986–08/1991 |
Audi 90
| Engine Code | Application Reference | Production Reference |
|---|---|---|
| CY | Audi 90 B2 1.6 TD | 10/1985–01/1987 |
| RA, SB | Audi 90 B3 1.6 TD | 04/1987–09/1991 |
Audi 100
| Engine Code | Application Reference | Production Reference |
|---|---|---|
| 3D | Audi 100 C3 2.4 D | 08/1989–07/1991 |
| AAS | Audi 100 C4 2.4 D | 12/1990–07/1994 |
| CN | Audi 100 C2/C3 2.0 D | Listed periods from 08/1978–11/1990 |
| DE, NC | Audi 100 C3 2.0 turbo-diesel applications | 08/1982–11/1990 |
Additional Applications Requiring Configuration Confirmation
Application records also list selected Audi A4 B5 1.9 TDI and Audi Cabriolet 1.9 TDI configurations using engine codes AFF, AFN, AHH, AHU, AVG and 1Z. Some of these records may require confirmation of the exact installation position or quantity. Do not determine the required quantity from the engine cylinder count alone.
This application information is a matching reference rather than an unrestricted fitment guarantee. Buyers should verify the OE number, engine code, production date and removed glow plug before ordering.
How to Confirm the Correct Audi Glow Plug
1. Verify the OE Reference
Check the OE number shown on the removed part, original packaging, vehicle parts catalogue or existing purchasing record. The number should correspond to one of the reference numbers listed on this page.
2. Confirm the Engine Code
Do not select the glow plug by vehicle model or engine displacement alone. Audi vehicles with the same model name and nominal engine size may use different glow plugs. The complete engine code provides a more precise application reference.
3. Check the Vehicle Production Date
Production changes can affect the glow plug specification used in the same vehicle range. Provide the vehicle production month and year whenever they are available.
4. Compare the Main Dimensions

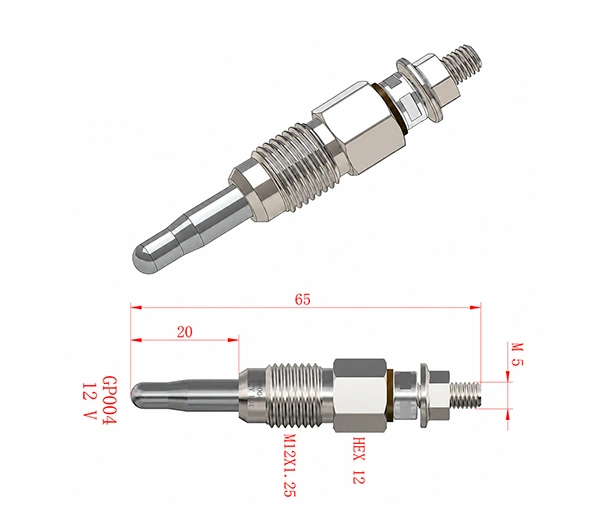

Before confirming a bulk order, compare the removed glow plug or approved technical drawing with the following product dimensions:
- M12 × 1.25 mounting thread
- M5 electrical terminal
- 12 mm hex
- 65 mm overall length
- 20 mm installation dimension shown on the product drawing
5. Confirm P.V. and B.V.
The plug voltage, or P.V., is 11V. The related vehicle electrical system voltage, or B.V., is 12V. These values describe different electrical references and should not be treated as conflicting specifications.
6. Confirm the Required Quantity
Do not determine the order quantity from the number of engine cylinders alone. Certain application records may involve a particular installation configuration or selected glow plug positions. Confirm the required quantity for the exact vehicle and engine before placing an order.
Product Design and Identification Features

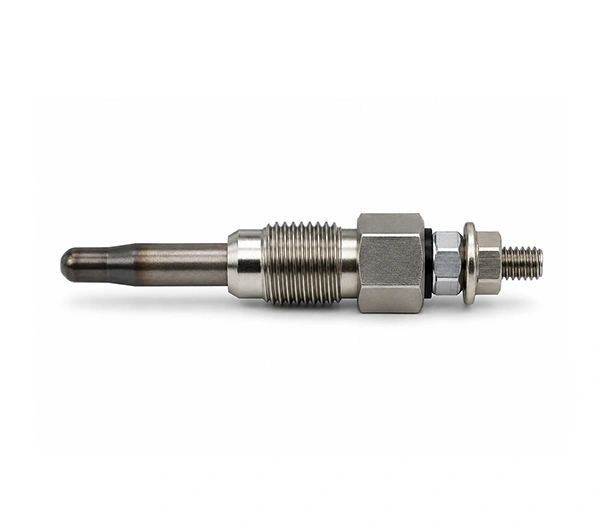

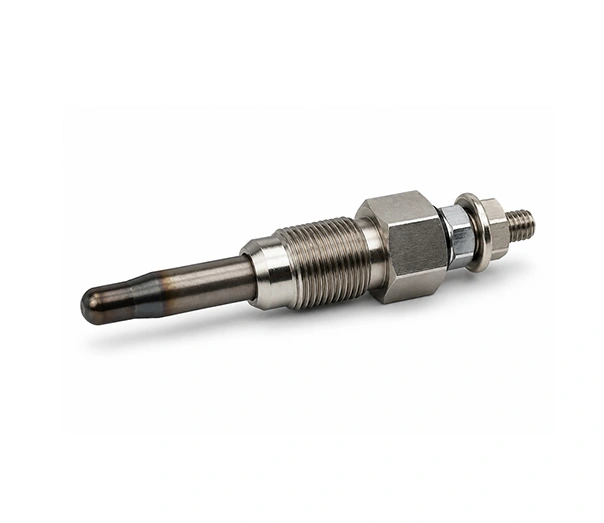

The glow plug uses a compact pencil-type metal construction suitable for installation in the cylinder head of the specified diesel applications. Its external geometry provides clear dimensional checkpoints for incoming inspection and application matching.
- The M12 × 1.25 body thread provides the specified cylinder-head mounting interface.
- The 12 mm hex provides the external installation tool interface.

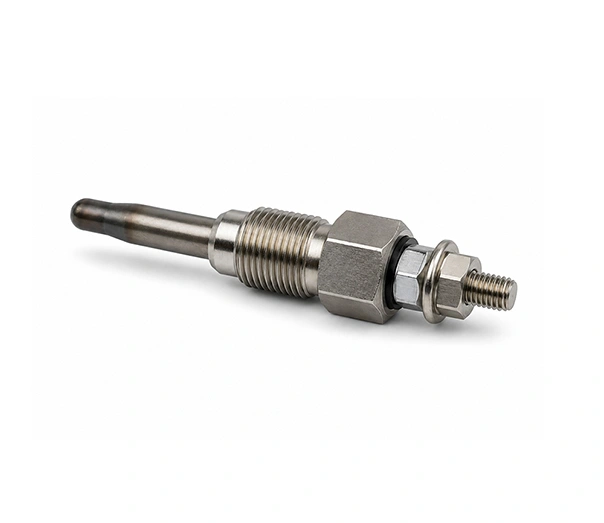

- The M5 threaded terminal provides the electrical connection point.
- The 65 mm overall length and 20 mm installation dimension help buyers compare the product with an original sample or approved drawing.
- The 11V P.V. and 12V B.V. values provide separate plug and vehicle-system references.
For procurement approval, these design characteristics should be checked together. A matching thread alone does not confirm the complete application.
OEM Audi Glow Plug Supply for B2B Buyers
Wellgine supports professional buyers sourcing Audi diesel glow plugs for established aftermarket and OEM supply programmes. The commercial process can include OE-reference checking, sample comparison, drawing review, packaging discussion and order planning.
This product is suitable for enquiries from:
- Automotive aftermarket distributors
- Engine parts importers
- National and regional wholesalers
- Diesel engine parts specialists
- OEM purchasing programmes
- Private-label brands
- Repair supply chains
Buyers planning a new product range can submit their target OE numbers and market applications for review. Existing distributors can also provide an original sample, dimensional report or packaging specification where additional confirmation is required.
Information Required for a Quotation
To reduce application and purchasing uncertainty, include the following information in your enquiry:
- Required OE reference number
- Audi model or target vehicle range
- Engine code
- Vehicle production month and year
- Required order quantity
- Destination country or sales market
- Original product photograph or drawing, where available
- Packaging and branding requirements
- Sample or batch-evaluation requirements
Send your OE number, engine code, vehicle production date and required quantity to Wellgine for application confirmation and a B2B quotation.
Frequently Asked Questions
What is the difference between P.V. 11V and B.V. 12V?
P.V. refers to the rated voltage of the glow plug, which is 11V. B.V. refers to the vehicle electrical system voltage, which is 12V. They describe two different electrical references and are not contradictory.
Can the product be identified by OE number 068 905 061?
Yes. 068 905 061 is one of the confirmed OE reference numbers for this product. The engine code, production date and original plug dimensions should still be checked before ordering.
Are N 102 130 01 and N 102 130 02 covered by the same product page?
Yes. Both numbers are confirmed product references for the glow plug described on this page. They are therefore presented together rather than being placed on separate duplicate product pages.
Does this glow plug fit every Audi diesel engine?
No. It is intended for selected Audi diesel applications. Suitability depends on the OE reference, engine code, production period, dimensions and installation configuration.
Can Wellgine supply this glow plug for OEM and private-label projects?
Yes. Wellgine supports OEM, aftermarket, wholesale and private-label enquiries. Packaging, sample evaluation, application scope and order requirements should be discussed for the specific project.
What should a buyer provide for application confirmation?
Provide the OE number, engine code, vehicle production date, required quantity and, where possible, a photograph or dimensional record of the original glow plug.
